How a Construction Time Lapse System Works
In the construction industry, time lapse systems on site are gaining prominence as an effective tool for monitoring and documenting project progress. This technology allows the regular capture of images from the construction site, later converted into accelerated video sequences that summarize the entire development process. This article, aimed at industry professionals, explores how such systems work, focusing on their components, installation, power supply, and connectivity. It also examines how to integrate time lapse into the typical workflows of construction companies, engineering firms, and project owners.
The goal is to provide a comprehensive overview of how to correctly configure a construction site time lapse system, with a focus on camera selection, technical choices, and the necessary precautions to ensure consistent performance, even under demanding operational and environmental conditions. Minimum requirements in terms of reliability, durability, and security are highlighted, along with the benefits of using integrated solutions optimized for construction environments
Table of Contents
Core Components
Cameras and Image Quality

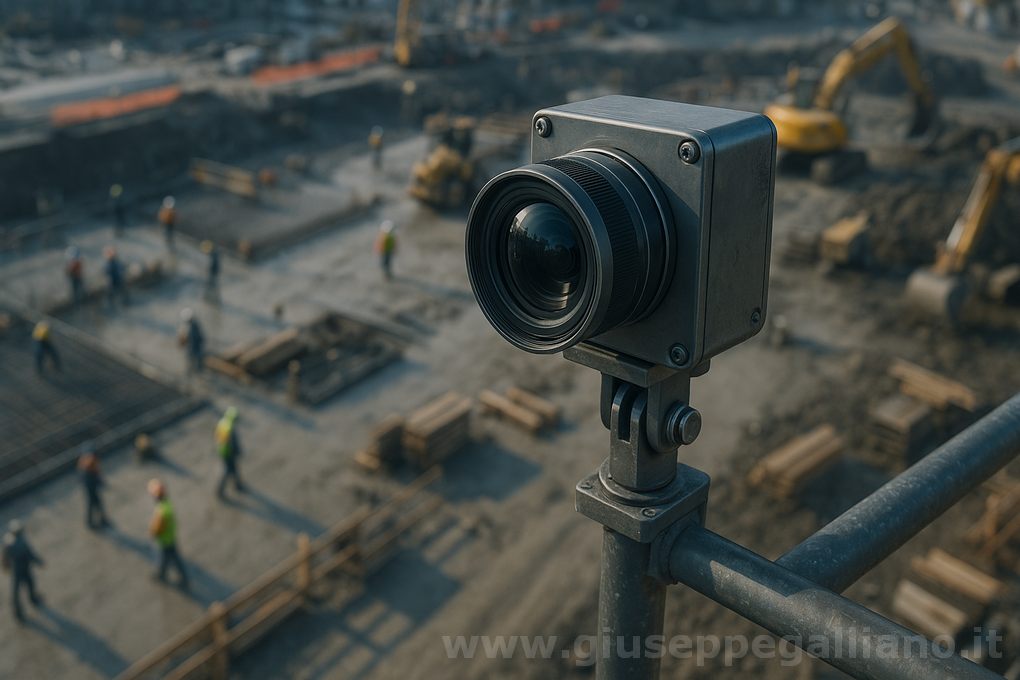

The camera is the core element of any time lapse system. It must be built for intensive use, capturing images at regular intervals (sometimes every few minutes), potentially operating continuously for several months. In construction environments, cameras must resist impacts, dust, moisture, and significant temperature fluctuations.
Key technical specifications for construction time lapse cameras include:
Resolution: Higher resolution improves the ability to capture fine details, helping to assess work quality.
Image sensor: CMOS (Complementary Metal-Oxide Semiconductor) sensors are preferred for their low power consumption and strong light-handling capabilities.
IP rating: An IP65 or higher rating is essential to prevent dust and water ingress.
Lens: A wide-angle lens is useful for covering large areas of the site; zoom or interchangeable lenses may be added where necessary.
See this guide on the best cameras for time lapse videos for more details.
In addition to core hardware, cameras often include anti-fog systems, internal heaters to prevent condensation in cold climates, and cooling fans for hot weather. Choosing the right industrial-grade hardware is one of the reasons why many professionals consult the article Why Choose Time Lapse for Construction Sites: Tangible Benefits, which covers the importance of robust, weather-resistant equipment for time lapse applications.
Enclosures and Mounting Systems
Protective housings must securely shield the cameras, preventing physical damage and moisture ingress. Front panels with anti-reflective and UV-resistant glass are critical to maintaining image color accuracy. Structurally, the mounting system must be compatible with poles or metal beams and resist high wind loads without excessive vibration.
Construction companies and engineering firms typically perform a preliminary topographic analysis of the site to identify optimal camera placements. This is covered in-depth in the article Best Camera Positions for Time Lapse on Construction Sites, which also explores solar power options and how to use elevated or wide-angle positions to capture areas not easily accessible from ground level.
Control Units and Management Software
A fully functional construction time lapse system requires a control unit to manage:
Shooting intervals: Set according to construction phases (e.g., more frequent during concrete pouring, less during curing).
Exposure and white balance: Adjusted to handle changing light conditions.
Storage: Either local memory cards or, for more advanced setups, remote servers or cloud platforms.
The management software allows you to schedule image capture, synchronize multiple cameras, and set up alerts (email or SMS) for anomalies or data transmission interruptions. Some advanced systems use AI algorithms to detect major changes in the frame, such as the arrival of large equipment or the erection of vertical structures. This aids in productivity monitoring and delay detection, benefitting both project owners and site managers.
On-Site Installation
Site Survey and Planning
Before installing time lapse cameras, it’s strongly recommended to conduct one or more site visits to assess operational constraints and avoid interference with daily activities. The assessment should address:
Internal traffic: Devices must not block access routes for vehicles or personnel.
Structural integrity: Ensure the chosen mounting surface can support the combined weight of the camera and housing.
Orientation and framing: Proper angle and perspective are crucial for producing meaningful, visually coherent sequences.
This preparatory step, often carried out in coordination with contractors and technical teams, helps prevent later relocations that could interrupt footage continuity and raise project costs.
Physical Setup and Safety
The physical installation must comply with onsite safety regulations. Personnel must wear PPE (Personal Protective Equipment) and, if needed, use fall protection systems. Key safety practices include:
Stabilizing tripods or poles on solid foundations, avoiding damaged flooring or unstable soil.
Using bolted joints with correct torque to prevent loosening from vibration or weather.
Grounding all metal components to protect against electrical discharges, whether atmospheric or caused by site equipment.
During setup, it is advisable to conduct a test shoot: position the camera in its final location and capture a few test images to check framing, detail resolution, and exposure under different lighting. This reduces the likelihood of corrective adjustments later.
Periodic Maintenance
A time lapse system running 24/7 for weeks or months requires scheduled maintenance, which may include:
Lens and housing cleaning to remove dust, cement splashes, or residue.
Check mounts and fasteners for looseness or corrosion.
Firmware updates for the camera or control unit when new versions are available.
To streamline operations, some companies include these tasks in regular safety inspections or weekly project meetings. Proper maintenance extends system lifespan and reduces the risk of recording interruptions.
Power Supply Options
Power supply is a critical factor for time lapse reliability. The choice depends on the project’s duration and the availability of electrical infrastructure on site.
Construction Site Grid
Larger sites often have a temporary electrical grid powering machines and office containers. Connecting the time lapse system to this infrastructure can simplify installation, ensuring a steady power source. However, an uninterruptible power supply (UPS) is recommended to guard against voltage spikes or temporary outages, which are common on construction sites.
Solar Panels and Generators
For remote locations or when aiming to reduce power consumption, dedicated solar panels can be used to power cameras and control units. The article on [solar panels](Best Camera Positions for Time Lapse on Construction Sites) explains how a combination of photovoltaic modules and batteries can ensure round-the-clock operation—if the shooting interval is optimized to avoid deep battery discharge.
Another option is the use of portable generators, sometimes paired with fuel tanks. However, this requires regular supervision and manual refueling, impacting overall operating costs.
Hybrid Systems
A hybrid configuration that combines site power (when available) with solar panels and battery storage offers maximum reliability. In the event of a power failure, the system automatically switches to the solar or backup supply, maintaining recording continuity. This setup is especially suitable for long-term projects where continuous documentation is crucial.
Connectivity and Data Transmission
Accessing data from a time lapse system, especially for sharing with stakeholders or engineering teams, depends heavily on the availability of a reliable communication network. Various options are available, each with pros and cons.
Wired and Wi-Fi Connections
In urban or industrial areas with existing network infrastructure, a wired Ethernet connection offers the best stability. Alternatively, a local Wi-Fi access point can be set up, protected with WPA2 or newer encryption, to transmit images to an internal or external server. While easy to install, Wi-Fi may suffer from signal interference caused by concrete walls or metal containers, so coverage should be carefully evaluated.
Mobile Networks (LTE, 4G, 5G)
One of the most popular solutions is LTE data transmission, which allows real-time upload of images. Many industrial cameras and control units support SIM cards with mobile data plans tailored to the expected traffic. Sites with poor signal coverage may struggle, but where service is adequate, this method is very practical. For a deeper look at security and performance, the article Time Lapse and Site Security: What to Consider explains how to prevent data breaches and encrypt video streams.
Cloud Access and Integration with Management Systems
Cloud-based platforms have become standard in industrial settings, centralizing image storage and making it easier to access visuals. Some vendors offer time lapse-specific platforms with intuitive web interfaces for reviewing image timelines, generating videos, and sharing updates via custom links.
In these cases, data security is critical. To ensure end-to-end protection, it is advisable to use HTTPS protocols, VPNs, or secure tunneling solutions. The article Cloud and Time Lapse: Remote Access to Construction Videos provides technical tips on managing login credentials, adjusting view permissions, and generating automated reports for stakeholders or project managers.
Strategic Value for Builders, Engineers, and Clients
Operational Advantages
For construction firms, a time lapse system allows:
Real-time monitoring of project progress without constant site visits.
Full documentation of every construction phase, proving compliance with design specs.
Analysis of delays and logistical optimization by comparing progress across time.
For engineering firms, time lapse is a feedback tool on design decisions. Each frame serves as a timestamped snapshot, allowing comparison between planned models (drawings and BIM) and actual site conditions. Early detection of deviations minimizes the need for mid-project changes, helping control both costs and timelines.
Project owners benefit from enhanced transparency. Visual updates confirm adherence to schedules and improve resource planning. In public contracts, certified visual records help prevent disputes and offer objective evidence of on-site activity.
Integration with Project Management Tools
With the rise of BIM methodologies and advanced project management software, the construction process is becoming increasingly digital. Time lapse acts as a bridge between digital models (3D, GANTT schedules, material take-offs) and actual site execution. Synchronizing data from IoT sensors and other sources opens the door to full life-cycle project control.
Future Outlook and Innovations
Ongoing R&D in continuous monitoring is bringing exciting new features:
Automated change detection: Computer vision algorithms can flag visual anomalies such as cracks or structural shifts.
Optimized data compression: Designed to minimize bandwidth usage for sites with limited connectivity.
Drone integration: Adds aerial perspectives without needing additional fixed cameras.
The expansion of 5G networks will support ultra-HD video transmission with minimal latency, enabling “virtual site” supervision where project managers oversee multiple locations remotely with high accuracy.
Conclusion
Implementing a construction time lapse system is a smart investment for all stakeholders involved. The technology delivers a steady stream of visual data, supporting better communication, quality control, and project transparency. Success depends on choosing suitable cameras, reliable power solutions (mains, generators, or solar), and the right data connections (wired, Wi-Fi, LTE).
When combined with regular maintenance, safety compliance, and clear data-sharing protocols, such systems offer tangible benefits—from real-time work verification to long-term documentation and efficient resource allocation. As digitization and automation continue to transform construction, time lapse will become an essential component of modern site management—driving efficiency and transparency across the entire sector.
